Automatic 840 Glazed Tile Roll Forming Machine 300 H Steel Frame Customized Color

Name: Automatic 840 Glazed Tile Roll Forming Machine 300 H Steel Frame Customized Color
Brand: SHITONG
Price: 9800 USD

China Automatic 840 Glazed Tile Roll Forming Machine 300 H Steel Frame Customized Color wholesale

Brand Name : SHITONG

Model Number : G840

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : 9800$

Payment Terms : L/C, T/T

Supply Ability : 30 SETS PER MONTH

Delivery Time : 30 DAYS

Packaging Details : THE MAIN MACHINE IS NUDE

COLOR : AS YOU REQUIRE

FRAME : 300 H STEEL

RAW MATERIAL WIDTH : 1000MM

SHAFT : 70MM

CUTTING : HYDRAULIC CUTTING

name : Glazed Tile Roll Forming Machine

Contact Now

Automatic 840 color steel aluminum roofing iron sheet arc glazed tile roll forming equipment building material machinery

Quick Details

Warranty: 12months
Type: Tile Forming Machine
Production Capacity: 3-5m/min
Certification: CE&ISO
After-sales Service Provided: Online support, Engineers available to service machinery overseas
Condition: New
Tile Type: Colored Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Brand Name: SHITONG
Voltage: 380v
Dimension(L*W*H): 6700*1500*1500mm
Weight: About 4.5t

Thickness: 0.3--0.8mm

Profiles: Glazed tile
Color: Customer Requirement
Diameter of shaft (solid shaft) : 80mm
Service: 12month

Main parameters

No.	main parameter of roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Rollers	11rows
4	Dimensions	7.01.61.5m
5	Power	4+3kw
6	Thickness of the plate	0.3-0.8mm
7	Productivity	3-5m/min
8	Diameter of the roller	Φ70mm
9	Weight	About 5.8T
10	Voltage	380V 50Hz 3phases
11	Rolling material	Carbon Steel 45#
12	Material of the cutting plate	Cr12
13	Processing precision	Within 1.00mm
14	Control system	PLC control
All technical parameters can be changed, according to user's need.

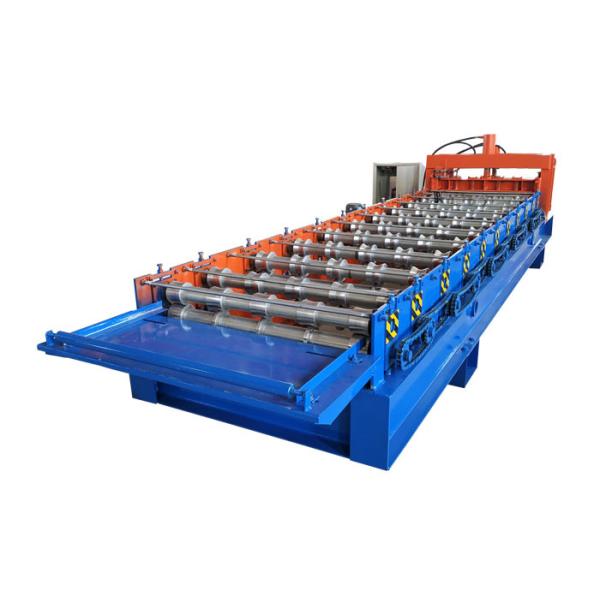

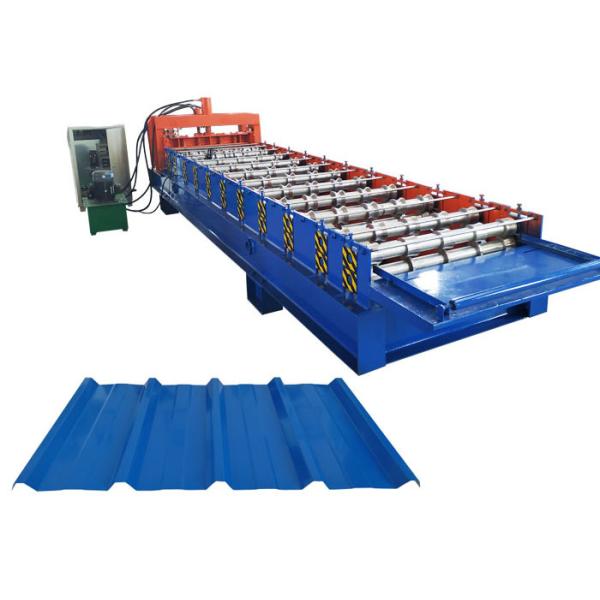

MAIN MACHINE PICTURES

Please feel free to contact us:

Contact person: Jessie Wang

Whatsapp/Wechat: +8613230728517

Email: jessie@shitongjixie.com

ADD:No. 1 Road, Economic Development Zone, botou, Hebei, China
